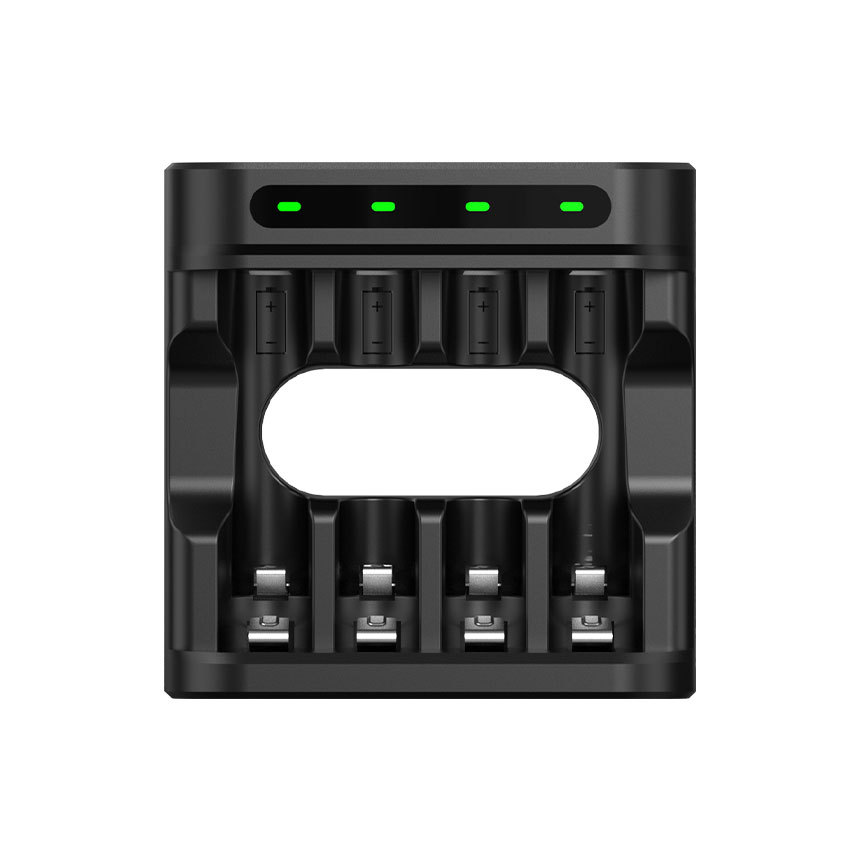

Name: XTAR L4 Charger for 1.5V lithium & 1.2V NIMH AA/AAA Batteries
Brand: XTARDIRECT-The official store of XTAR charger, led flashlight and
Price: 12.99 USD
Availability: InStock

XTAR Latest cost-effective AA battery charger

0.0 (0 Reviews)

73 Sold

$12.99

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

0 in stock

Add to Favorites (1)

1/1

Description

One for all, AA/ AAA
• Mix-charging 1.5V Li-ion & 1.2V Ni-MH AA/AAA batteries
• 4 x 0.5A charging
• Auto cut-off when fully charged
• Revives over-discharged batteries
• Hollow-out design, easy to remove batteries and dissipate heat
• Built-in multiple protections for charging safety
• Perfect for trail cameras, RC cars, mini-z, transmitters, VR controllers

FAQ about XTAR L4 AA AAA Battery Charger

1.Which adapters are compatible?

The L4 charger is compatible with major brand PD/QC adapters such as Samsung, Huawei, Xiaomi, etc.

2.Should I connect to power first or insert the battery first?

For the smart charger L4, it doesn't matter whether you connect to power first or insert the battery first.

3.What is the difference between the XTAR charger L4 and BC4?

L4 lacks USB output, a transparent cover, and lights. But it features a hollow design, making it easier to remove the battery.

4.Which brands of batteries can be charged with L4?

XTAR L4 is compatible with AA/AAA NiMH batteries and the majority of 1.5V lithium batteries from various brands. Currently tested brands and models are as follows:

1.5V Li-ion

Doublepow AA 2750mWh，Doublepow AA 3400mWh，Doublepow AAA 1000mWh，Doublepow AAA USB 1000mWh，
Deleepow AA USB 2800mWh，Deleepow AA 3400mWh，Deleepow AAA USB 1200mWh，Deleepow AAA 962mWh，
Leise AA USB 3400mWh，Leise AAA USB 700mWh，
555 AAA USB 800mWh，
Tenavolts AA, Palo AA 2800mWh，
Enexeed AA 2000mWh,
XTAR AA 2700mWh，XTAR AA 3300mWh，XTAR AAA 1200mWh，
EBL AA 3000mWh

1.2V Ni-MH

Eneloop AA 2450mAh, Eneloop AA 1900mAh, Eneloop AAA 950mAh, Eneloop AAA 750mAh, Doublepow AA 2200mAh, Doublepow AA 2700mAh, Doublepow AAA 950mAh, Doublepow AAA 900mAh,
Deleepow AA 3300mAh, Deleepow AA 2700mAh, Deleepow AA 1300mAh, Deleepow AAA 1100mAh, Deleepow AAA 950mAh,
GP AA 3800mAh, GP AA 2600mAh, GP AAA 850mAh, GP AAA 1200mAh,
Camelion AA 2500mAh, Camelion AAA 900mAh,
Xiaomi ZMI AA 1750mAh, Xiaomi ZMI AAA 750mAh，
enevolt AA 3000mAh，enevolt AA 2150mAh，enevolt AAA 950mAh，
PISEN AA 2500mAh，PISEN AAA 900mAh，
Leise AAA 1150mAh，
XTAR AA 2200mAh，XTAR AA 2500mAh，XTAR AAA 900mAh，
OXOPO AAA 600mAh

• For all the acceptable 1.5V lithium batteries, if the internal cell is over discharged, as the activation current is very small, the red and green lights will alternate flashing during activation.

• The above list includes only some brands, and there are also other brands on the market that are compatible.

5.Can the XTAR L4 charge 3.6V lithium batteries?

The L4 charger cannot charge 3.2/3.6/3.7V lithium batteries. If such batteries are mistakenly inserted, the L4 charger will quickly flash a red light and will not charge them.

6.What safety protection features does the L4 charger have?

It includes over-current protection, over-voltage protection, short-circuit protection, over-charge protection, reverse polarity protection, and also overtime-charging protection.

The Overtime Charging Protection applies to all AA and AAA batteries. If the charging time exceeds the preset time, the charger will automatically stop charging. This charging time is designed to be generous, ensuring that high-capacity batteries can also be fully charged. So this protection is usually more useful for high-capacity batteries.

7.When using the L4 or L8 charger for 1.5V lithium batteries with LED indicator, how are the charger's LEDs and battery indicator lights coordinated during charging?

In charging, the LED light of the charger L4 or L8 will be in solid red, and the LED light of the battery will flashing. After fully charged, the LED light of the battery will turn off, and the LED light of the charger L4 or L8 will be in solid green.

8.What are the meanings of the different states of the LED indicator lights on the L4 charger?

During battery identification/activation, the red light will slowly flash. Once identification is complete, the red light will stay on during charging. When fully charged, the green light will stay on. In the case of a short circuit or abnormal situation, the corresponding channel's LED will rapidly flash red.

Operation:

After powering on the charger, all channel red lights will be on for 1 second, then they will switch to a steady green light, entering standby mode. While in standby mode, insert the battery, and the slow flashing red light indicates 0V activation/identification mode. 0V activation/identification will complete after ten minutes (Note: 1.5V lithium batteries that haven't been deeply discharged don't need activation and can be identified within 1 second).

If activation is completed and a NiMH or 1.5V lithium battery is detected, the red light will remain steady, indicating normal charging. If activation fails or a faulty battery is detected/incorrect battery is inserted (Alkaline or 3.6/3.7V lithium-ion battery), the red light will rapidly flash, indicating charging abnormalities. Once the steady red light transitions to a steady green light, charging is complete.

9.What are the advantages of the L4 charger when charging 1.2V AA/AAA NiMH batteries?

XTAR employs the latest innovative technology on L4 charger to more accurately determine the saturation point of NiMH batteries, allowing them to be fully charged without overcharging. This departure from the historical need to overcharge NiMH batteries before determining fullness. It saves charging time and lowers the temperature of the battery surface during charging, effectively extending battery cycle life.
