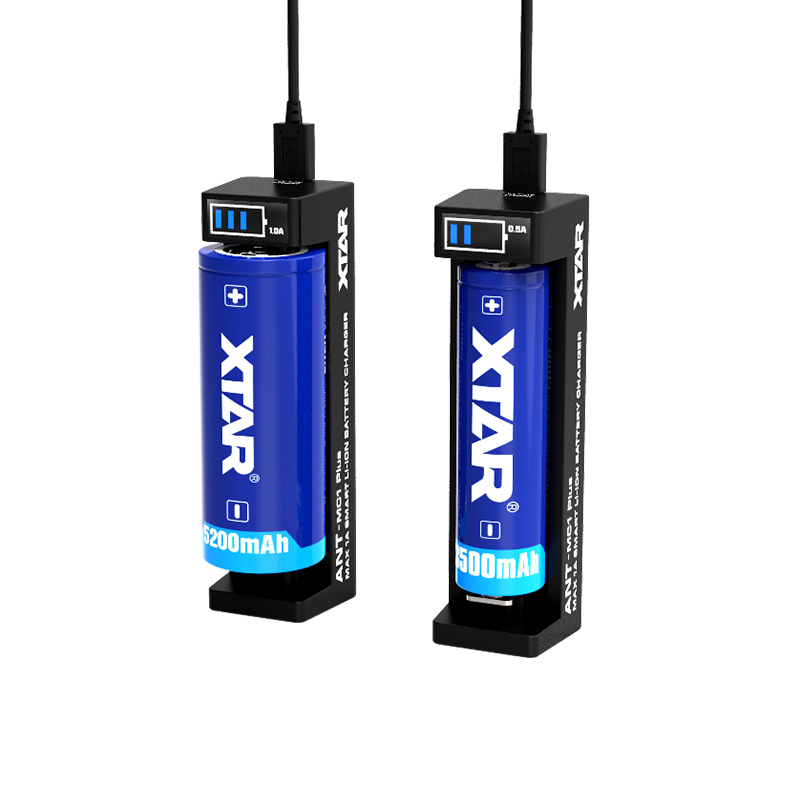

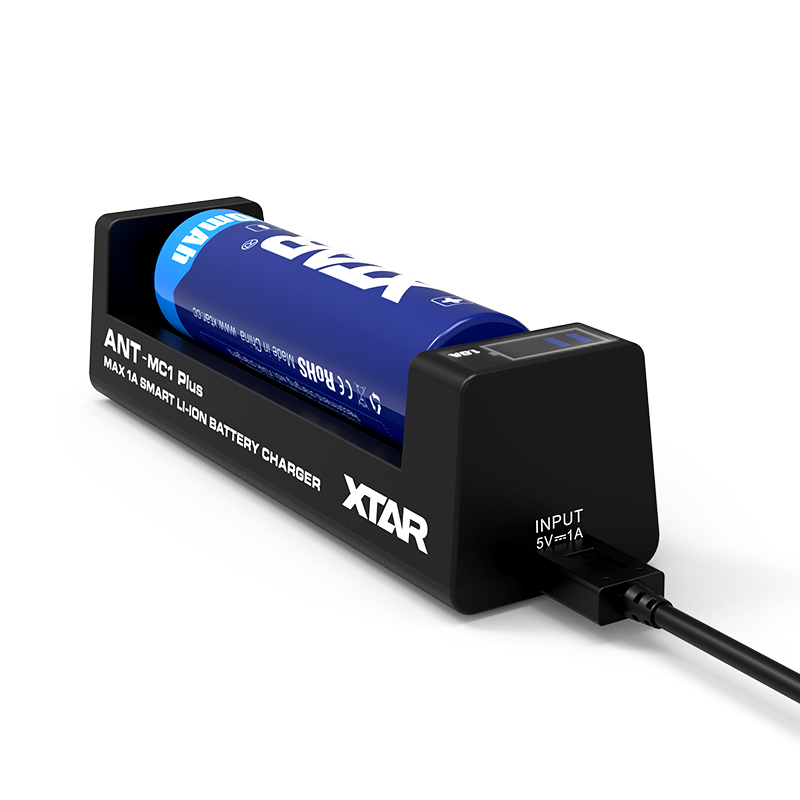

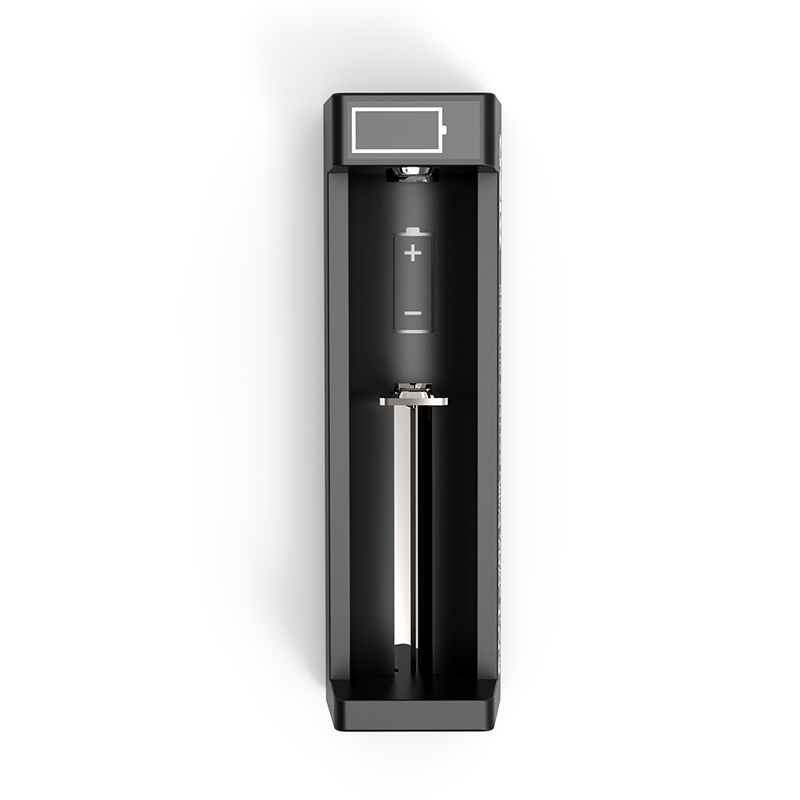

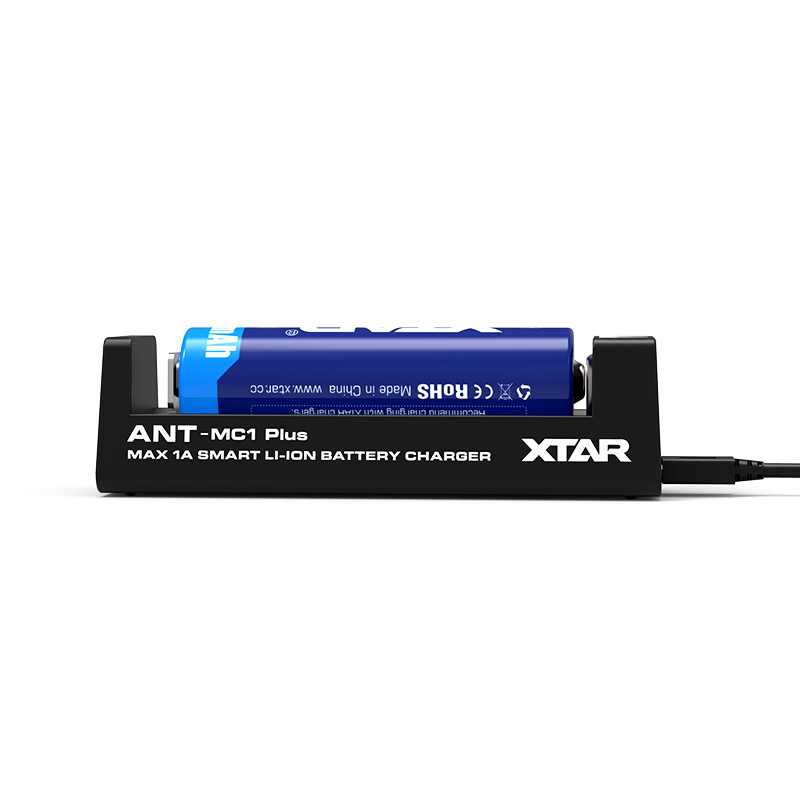

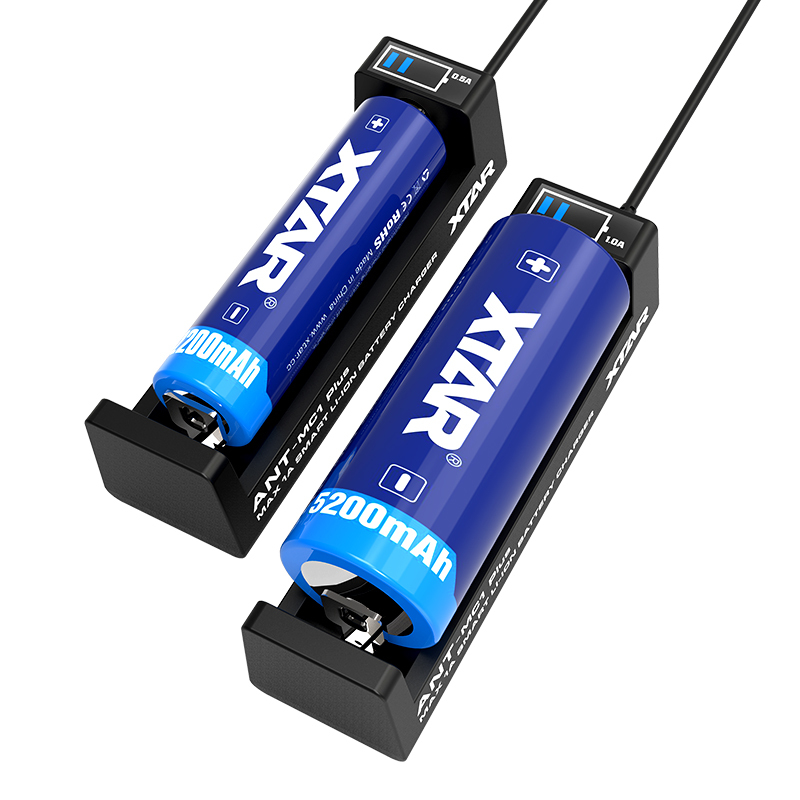

XTAR ANT MC1 Plus Battery Charger
Features:
• single slot
• 0.5A/1A current, fully charge a VTC5 in 3 hours with 1A

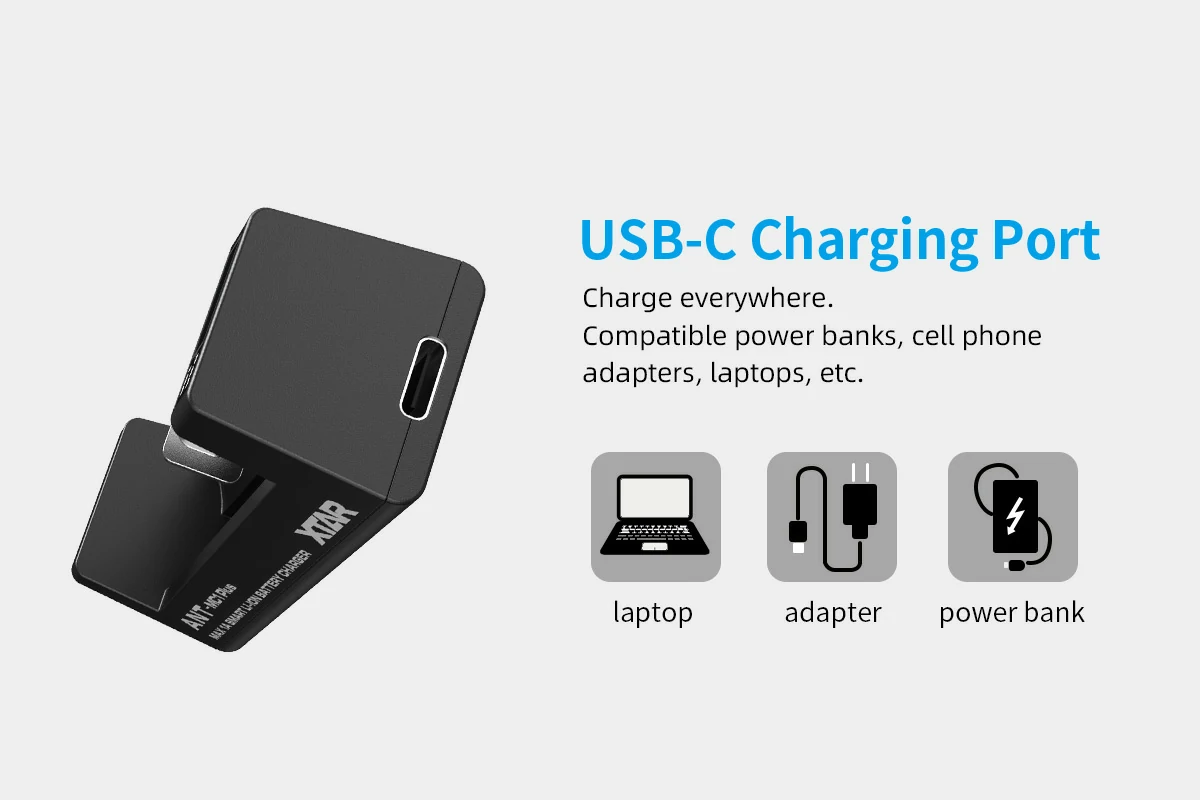

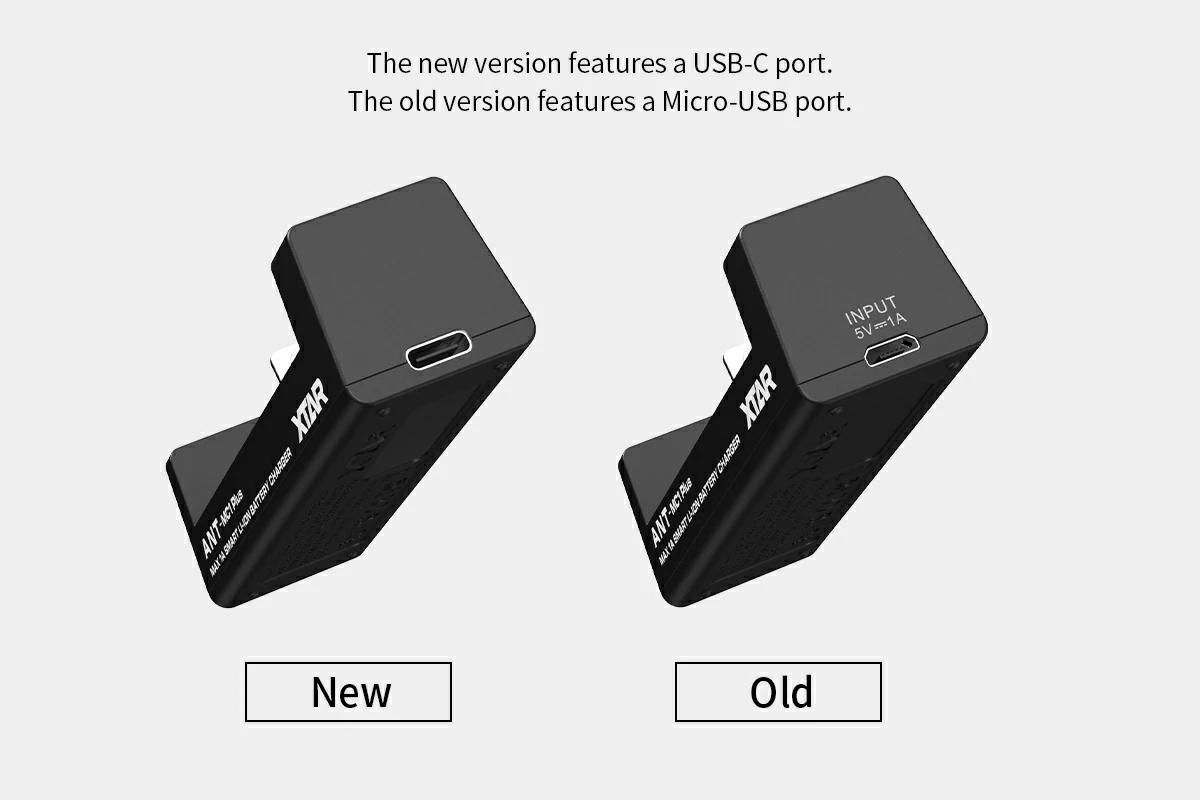

• USB-C port, charge anywhere

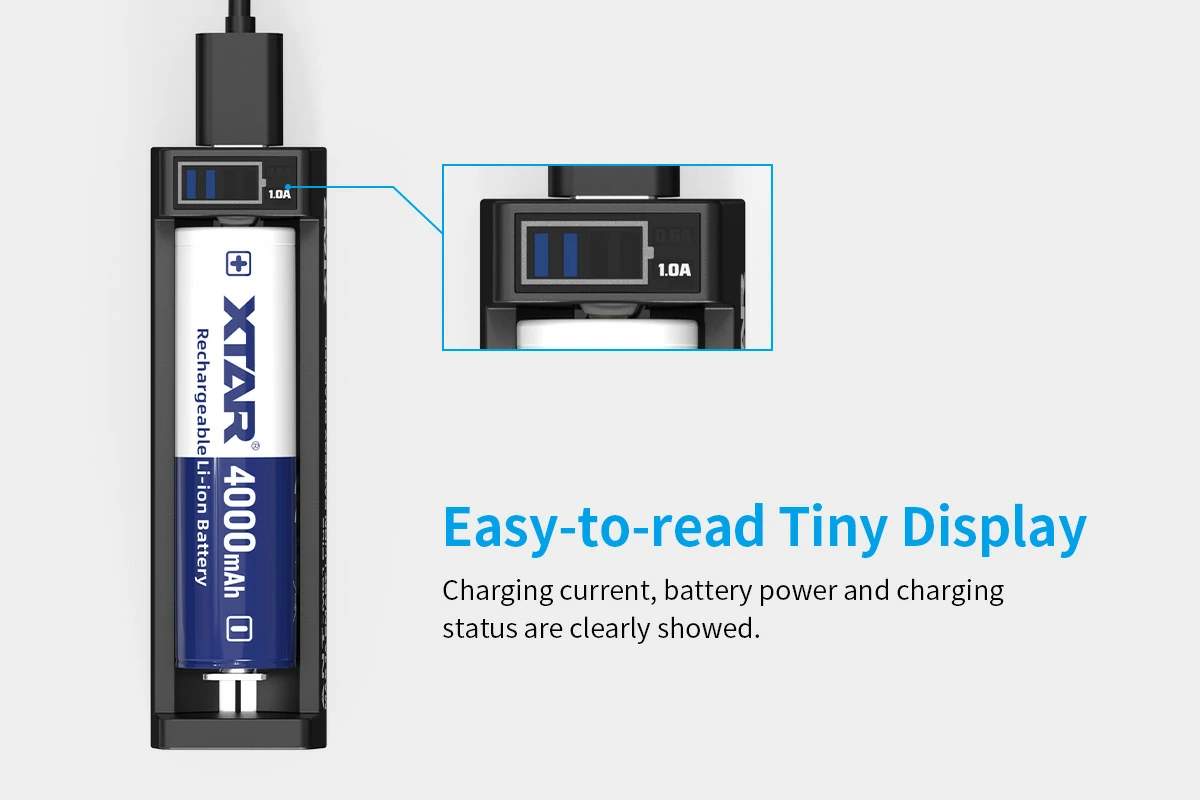

• LCD display shows charging status and charging current

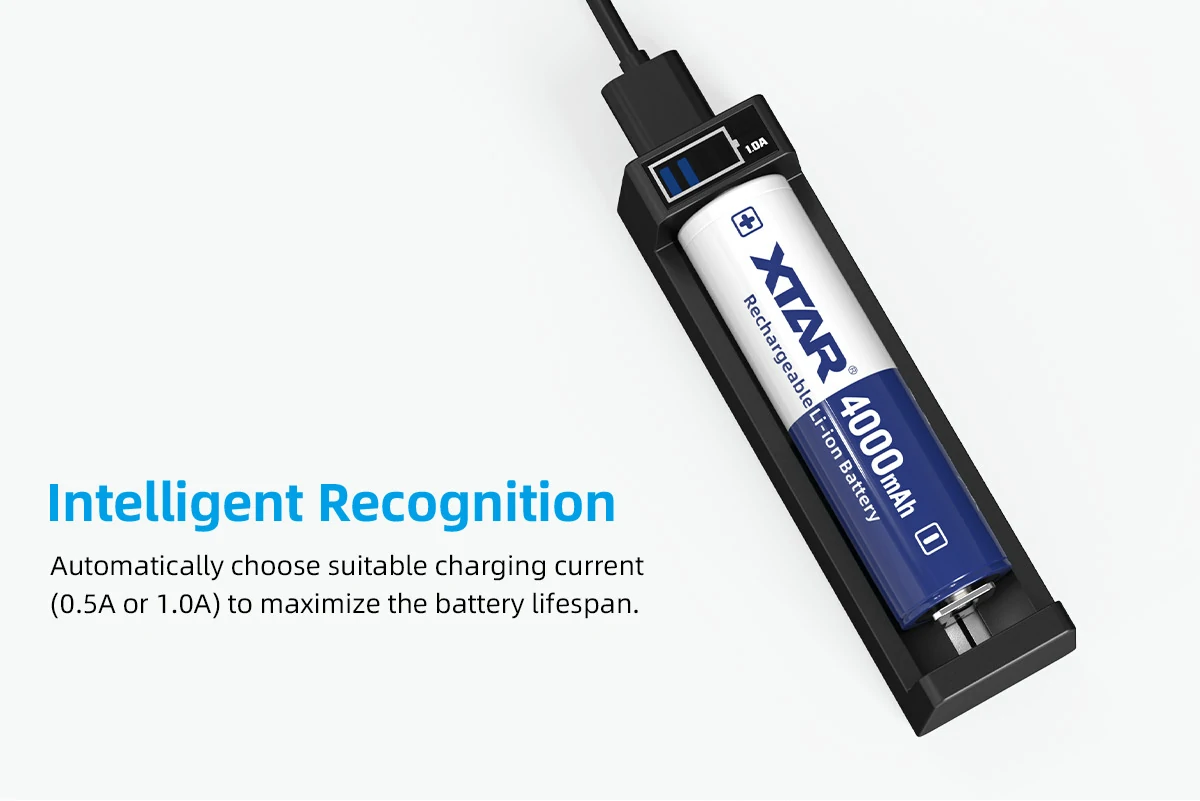

• intelligently adjust charging current

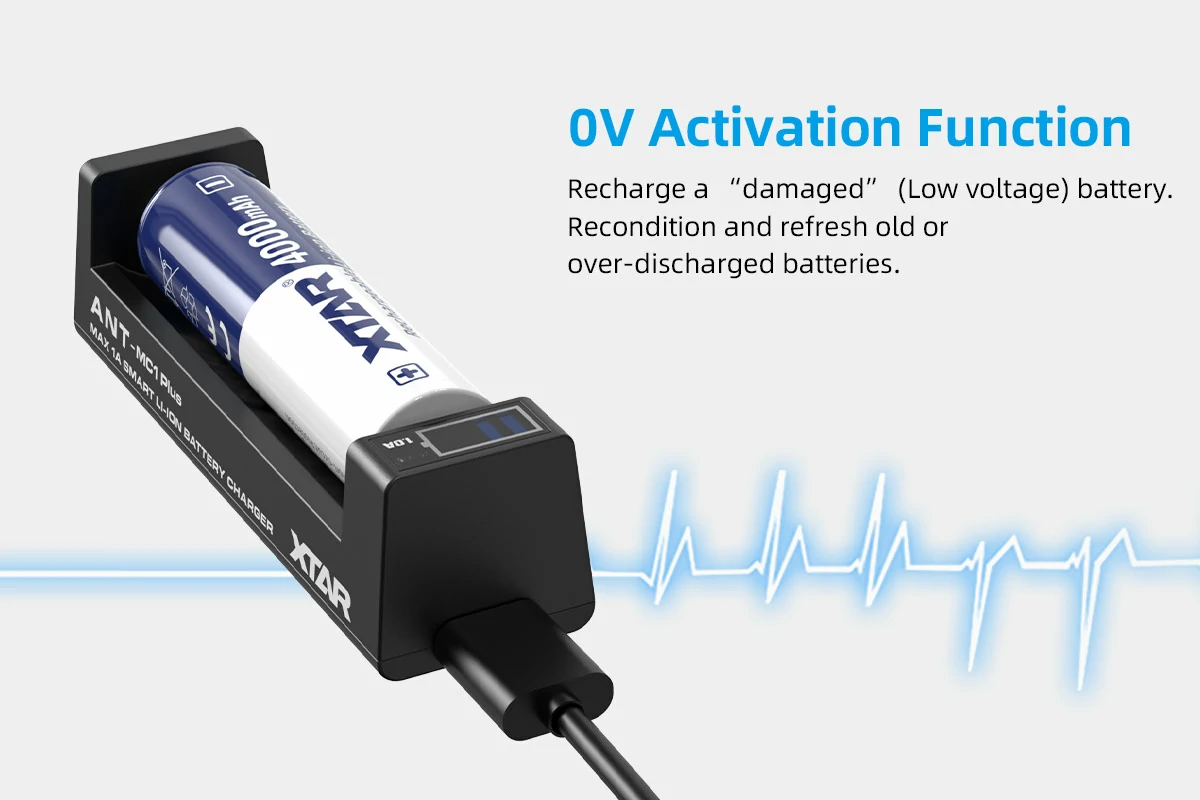

• 0V activation function, revives over-discharged batteries

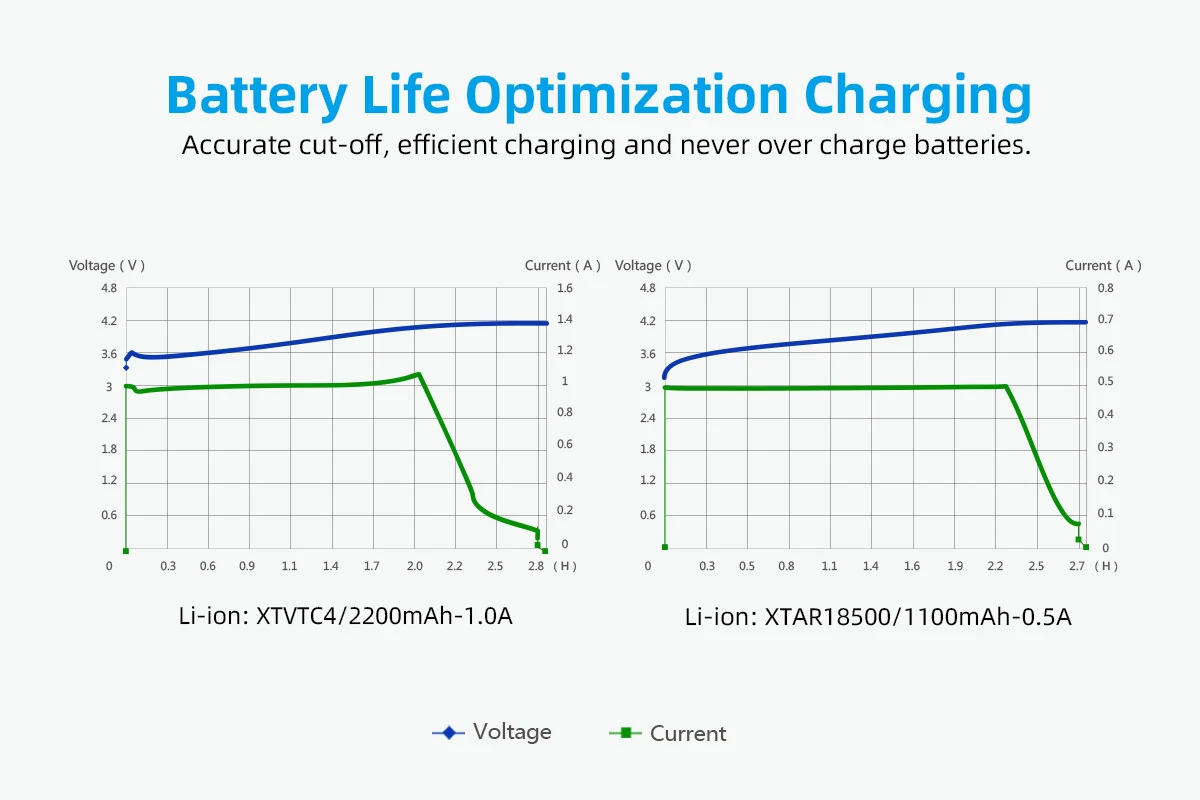

• accurate cut-off, efficient charging and never over charge batteries.
• reverse polarity and short circuit protection

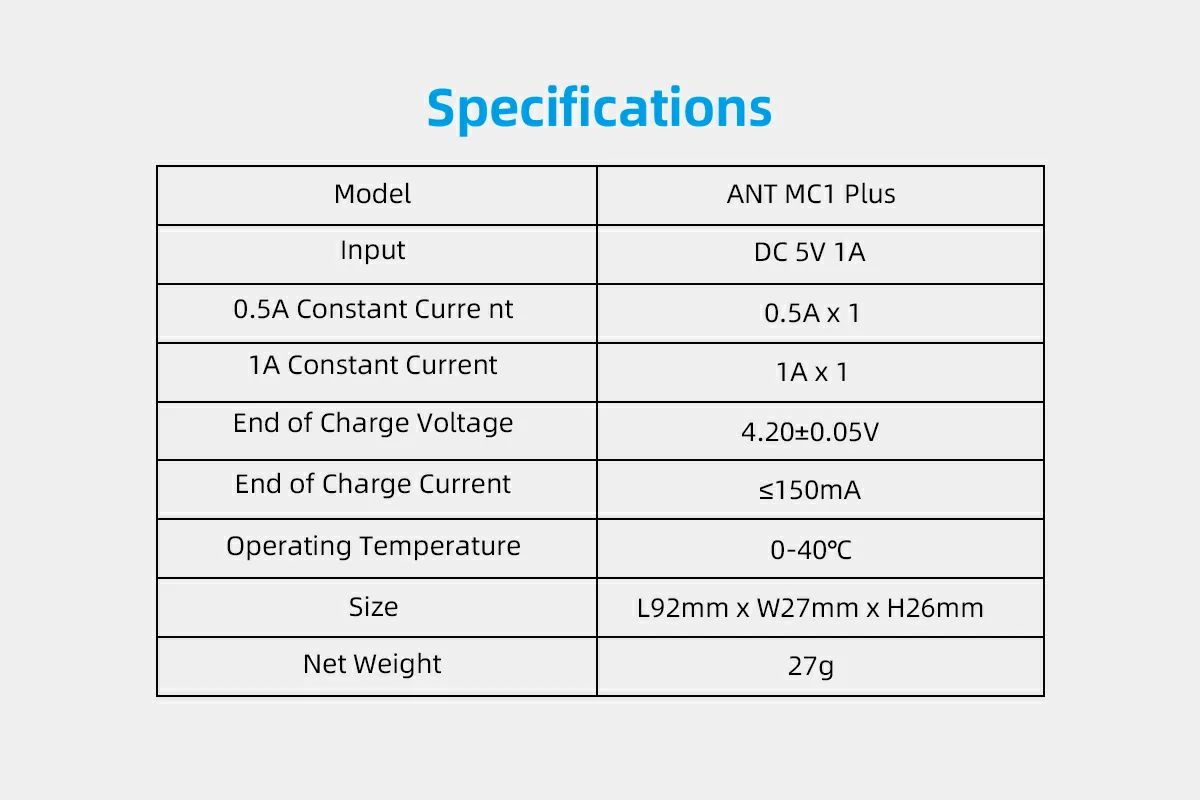

Specification:
Input: DC 5V 1A
0.5A Constant Current: 0.5Ax1
1A Constant Current: 1Ax1
End of Charge Voltage: 4.20士0.05V
End of Charge Current: ≤120mA
Operating Temperature: 0-40 C
Size: L92mm x W27mm x H26mm
Net Weight: 27g

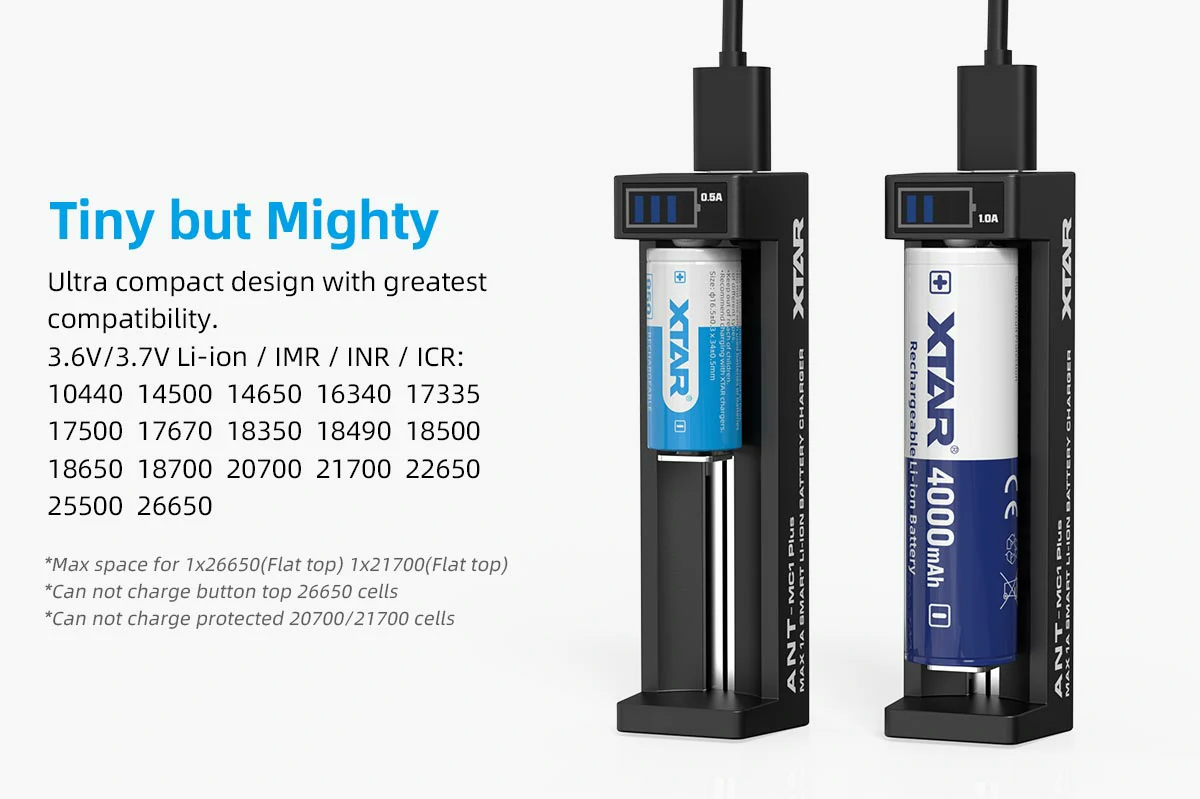

Compatible Batteries:
3.6V/3.7V Li-ion/ IMR / INR/ ICR:
10440 14500 14650 16340 17335 17500
17670 18350 18490 18500 18650 18700
20700 21700 22650 25500 26650
Note: 1. Max space for 1x26650 (Flat top) + 1x21700 (Flat top)
2. cannot charge button top 26650 cells
3. cannot charge protected 20700/21700 cells

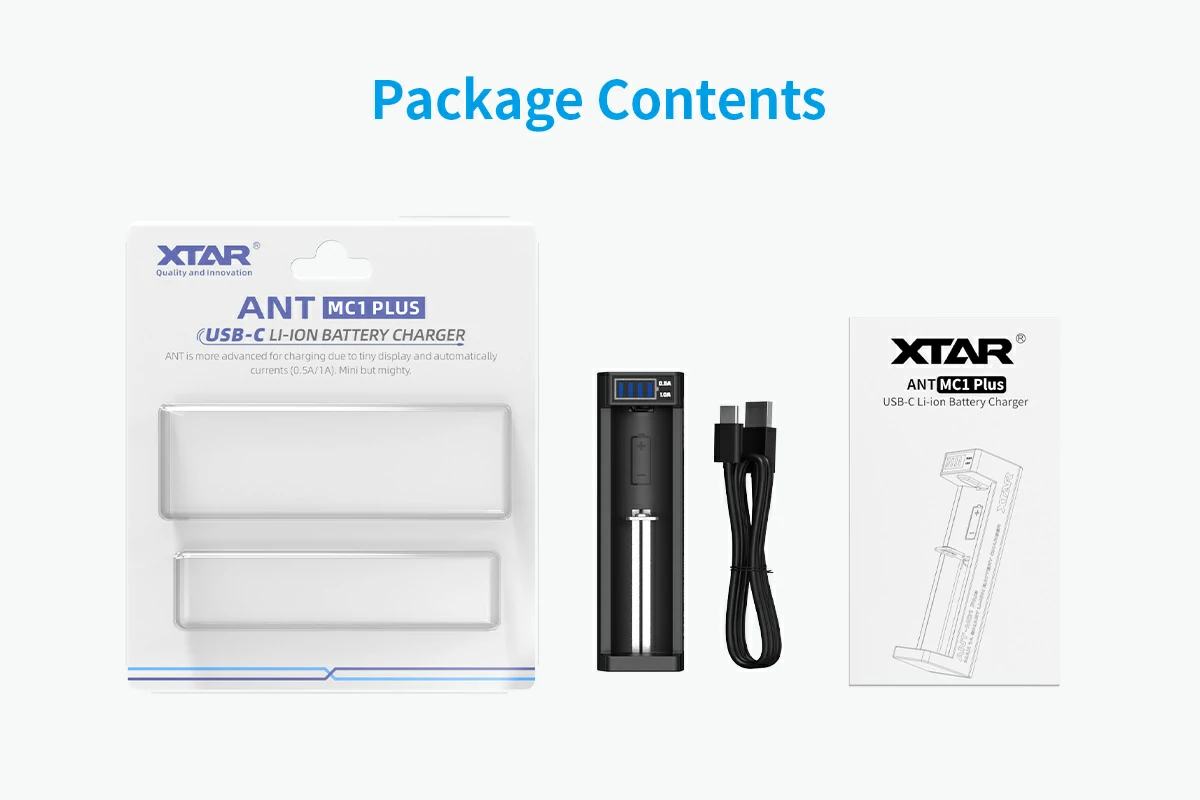

Package Include:
1*MC1 Plus charger
1*USB cable
1*manual
MC1 /MC1 NEW /ANT MC1 Plus charger comparison:
| Model | ANT MC1 PLUS | MC1 | MC1 NEW |
| Port | Type-C | Type-C | Type-C |
| Input | 5V/1A | 5V/0.5A | 5V/1A |
| Battery | 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650 *Max space for 1x26650 (Flat top) + 1x21700 (Flat top) *Can not charger button top 26650 cells *Can not charger protected 20700/21700 cells |
10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650 *Can not charge protected 20700/21700 cells |
10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650 *Can charger protected 20700/21700 Battery |
| Constant Current | 0.5Ax1 / 1Ax1 | 0.5Ax1 | 1Ax1 |
| Size | L92mm x W27mm x H26mm | L92mm x W22mm x H26mm | L103mm x W25mm x H30mm |
